[ICEM] cut plane visualization

Register Blogs Members List Search Today's Posts Mark Forums Read

Like Tree1Likes
  • 1 Post By PSYMN

Reply

LinkBack Thread Tools Display Modes
Old   December 12, 2010, 13:59
Default cut plane visualization
  #1
Member

W.N. Anderson
Join Date: Jul 2010
Location: Zürich, Switzerland
Posts: 46
Rep Power: 6
Will Anderson is on a distinguished road
Can ICEM simply show the tetrahedral lines of the mesh on a cut plane without
shadows,
lighting,
cells from the back of the cutplane,
coloring by quality
?

Just the lines would be grand. No colors. No shading.

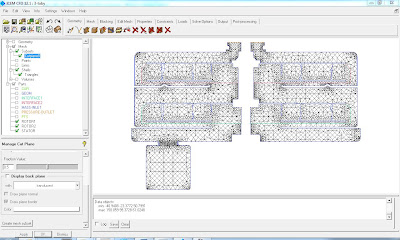

Rather than this:


can it produce this type of view?
Will Anderson is offline   Reply With Quote

Old   December 12, 2010, 16:17
Default
  #2
siw
Senior Member

Join Date: Jul 2009
Posts: 443
Rep Power: 13
siw will become famous soon enough
You could try the WireFrame Simple Display drop down menu which is the icon below the Undo icon.
siw is offline   Reply With Quote

Old   December 12, 2010, 17:20
Default
  #3
Member

W.N. Anderson
Join Date: Jul 2010
Location: Zürich, Switzerland
Posts: 46
Rep Power: 6
Will Anderson is on a distinguished road
Almost! Thanks! I still see the interior and the mesh on the back side.

I acknowledge that I mentioned Tets in the original post, but in actuality it applies to any 3d mesh. There is the choice of two types of mesh display more or less:
solid: (solid/wireframe)

which is nice because there are no visible interior or backside cells, but there's the (in my case undesirable) shading and the lighting.

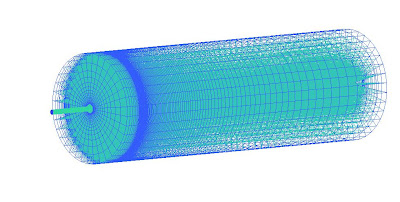

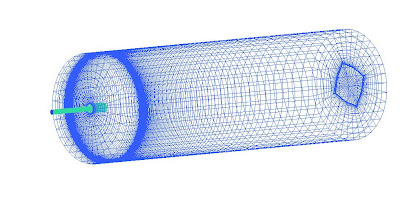

The wireframe views look like these (with and without volume meshes):

which is nice because of the absence of lighting and shading effects, but the interior and anterior cells are visible.
Can I turn off lighting, even if only for pictures which I save? Or can ICEM display wireframes of only the cells in the foreground?

I'm flexible, actually. The display could remain the same, no problemo, if the postscript output would only show wireframes of the visible cells and no shading/shadows etc.
Any tips? Solutions which include modifying the postscript with a text editor are also very welcome.
Will Anderson is offline   Reply With Quote

Old   December 13, 2010, 10:43
Default
  #4
Member

Fabian E.
Join Date: Nov 2009
Posts: 33
Rep Power: 7
galap is on a distinguished road
I didn't get it in ICEM, but in CFX Pre you have more control over the view. One Example attached
Attached Images
File Type: jpg Rohr.jpg (47.7 KB, 48 views)
galap is offline   Reply With Quote

Old   December 14, 2010, 07:47
Default
  #5
siw
Senior Member

Join Date: Jul 2009
Posts: 443
Rep Power: 13
siw will become famous soon enough
How about:

i) Change the element colour to white in the PARTS (I only used 1 PART).
ii) Go to Settings/Lighting and set ambient = 1, diffuse = 1, specular = 0 and shininess = 1
iii) I also set the background colour to be white with no gradient and got rid of the ANSYS logo using the Settings/Background Style.

The image shows these steps for the cube with a cylinder cut-out and an auto sized Octree mesh. This is all I can think of.
Attached Images
File Type: jpg 2.jpg (60.2 KB, 49 views)
siw is offline   Reply With Quote

Old   December 15, 2010, 03:50
Default Great!
  #6
Member

W.N. Anderson
Join Date: Jul 2010
Location: Zürich, Switzerland
Posts: 46
Rep Power: 6
Will Anderson is on a distinguished road
Thanks alot, works for me too.
Now I only need to get the postscript output to look like that!
"Mono" renders the entire domain as black, and
"Greyscale" causes ICEM to crash (while saving the picture).
But the lighting settings are already a great step forward.
Thanks.
Will Anderson is offline   Reply With Quote

Old   December 20, 2010, 21:00
Default Hidden Line
  #7
Senior Member

PSYMN's Avatar

Simon Pereira
Join Date: Mar 2009
Location: Ann Arbor, MI
Posts: 2,662
Blog Entries: 1
Rep Power: 35
PSYMN has a spectacular aura aboutPSYMN has a spectacular aura about
You should try "Hidden Line" (right click on shells on the display tree).

The colors are still there, but only in a helpful way...




You can also hit F8 or F7 to adjust the Z-buffer (try it to see what it does).

In ICEM CFD, it is only a good idea to show Solids if you are doing so on purpose, and usually you would use a cutplane...
ftab likes this.
PSYMN is offline   Reply With Quote

Old   December 26, 2010, 06:03
Default
  #8
Member

W.N. Anderson
Join Date: Jul 2010
Location: Zürich, Switzerland
Posts: 46
Rep Power: 6
Will Anderson is on a distinguished road
Thank you Simon.

Does the postscript output respect the "hidden line" setting?

My evidence suggests that it does not, that it shows grid lines behind the exposed plane. The first image shows the grid with cut plane with hidden-line setting, the second image shows the resulting postscript output viewed in ghostscript.



Will Anderson is offline   Reply With Quote

Old   January 8, 2011, 16:55
Default Works for me...
  #9
Senior Member

PSYMN's Avatar

Simon Pereira
Join Date: Mar 2009
Location: Ann Arbor, MI
Posts: 2,662
Blog Entries: 1
Rep Power: 35
PSYMN has a spectacular aura aboutPSYMN has a spectacular aura about
Interesting...

When I try it, it works for me. Here is an image of a cutplane with Hidden line turned on.

I wonder if it is a platform thing? Or a graphics card thing? Be more specific about your setup and I will try to match the test.

However, I almost never use this option. I usually use mwsnap to take my images. It is a free tool that runs outside of ICEM CFD... I use it to snap images of other software, the whole screen, part of the screen, whatever.

There is a newer version of mwsnap that I didn't like much. See if you can find an older version MWSnap 3.0.0.74.
PSYMN is offline   Reply With Quote

Old   January 8, 2011, 16:59
Default
  #10
Senior Member

PSYMN's Avatar

Simon Pereira
Join Date: Mar 2009
Location: Ann Arbor, MI
Posts: 2,662
Blog Entries: 1
Rep Power: 35
PSYMN has a spectacular aura aboutPSYMN has a spectacular aura about
Oh, maybe it is because you used postscript? I don't use that. I just tried it but didn't have anything to read it... Try JPG or one of the other more common formats.
PSYMN is offline   Reply With Quote

Old   January 9, 2011, 13:25
Default Postscript output needed...
  #11
Member

W.N. Anderson
Join Date: Jul 2010
Location: Zürich, Switzerland
Posts: 46
Rep Power: 6
Will Anderson is on a distinguished road
Hi Simon,
Thanks for your insight.
I run ICEM CFD on Windows 7 on my Macbook Air.
I use postscript as I want vector graphics rather than raster. And I want to include the graphics into LaTeX documents rather than Word or OpenOffice. Therefore, screenshots or jpgs are unsuitable for my needs.
Best,
Will
