How to simulate rolling?

Register Blogs Members List Search Today's Posts Mark Forums Read

Reply

LinkBack Thread Tools Display Modes
Old   June 22, 2011, 18:19
Default How to simulate rolling?
  #1
New Member

Cindy Wang
Join Date: Jun 2011
Posts: 1
Rep Power: 0
choxie148 is on a distinguished road
Hey guys,
I am trying to wrap a thin strip onto a slender cylindrical rod within static structural module of ANSYS 13. I essentially set two boundary conditions:
1. Angular velocity on the rod for rolling
2. Force on the strip to keep the strip straight
I have attached the unrolled and rolled state of what I want. So far within ANSYS, the solution produces huge distortion for the strip geometry.
As a matter of fact, I am not quite sure if I'm even using the correct module. So far only the static structural module seems to produce something other than error.
Please provide some pointers as how I can achieve the correct result. Your help is very much appreciated.
Pictures:

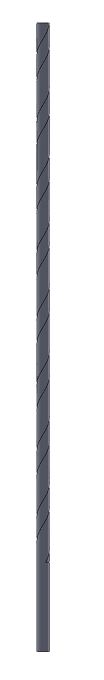

Before rolling: http://files.engineering.com/getfile.aspx?folder=3bf5a242-7d2d-40d0-900a-6862d18eb616&file=Unrolled.JPG

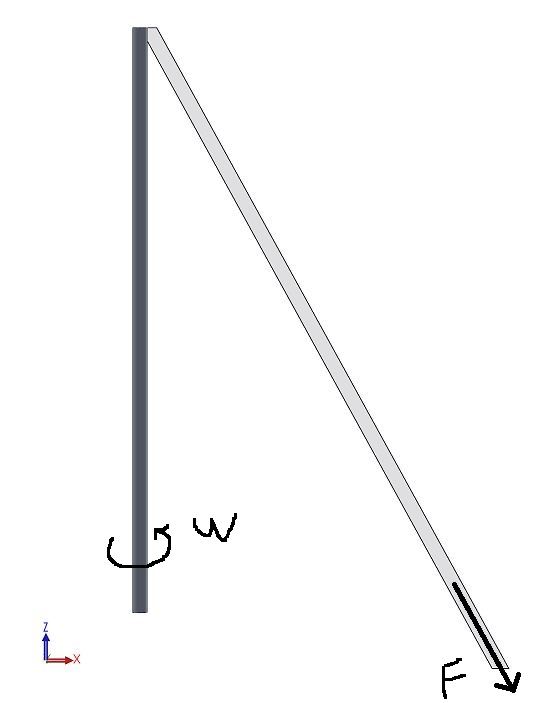

After rolling: http://files.engineering.com/getfile...ile=rolled.JPG
choxie148 is offline   Reply With Quote
