Hi ALL,

I am trying to mesh a geometry with hex dominant cells, Please go through the snaps I have posted here.

I have a cicular pipe on one end and a rectangular cross section box on the other end. The transition is from a circular cross-section to a rectangle. Hence there is a planar diffuser in between. I am trying to mesh this geometry using the blocking method in ICEMCFD.

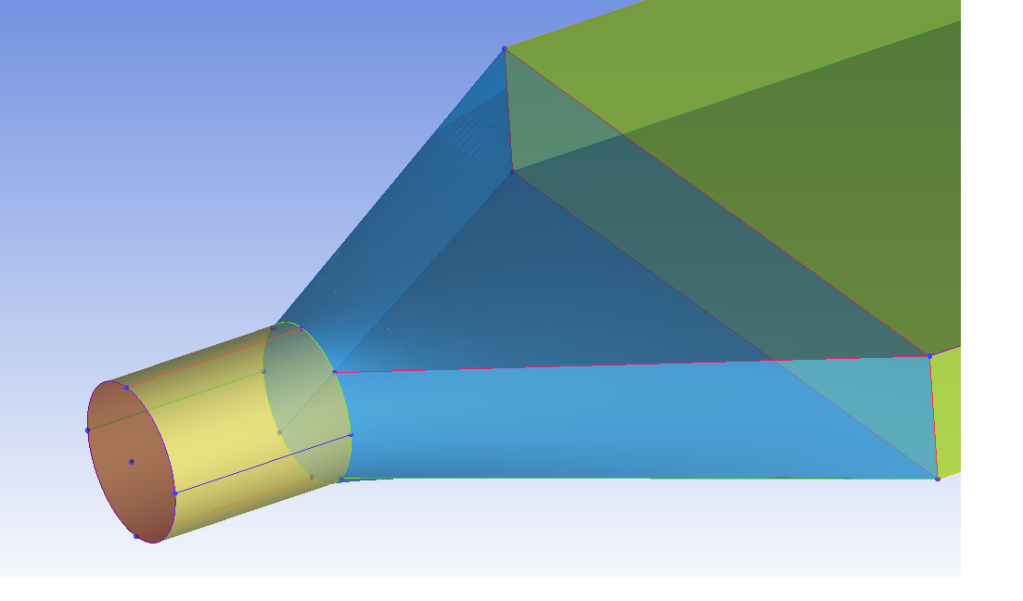

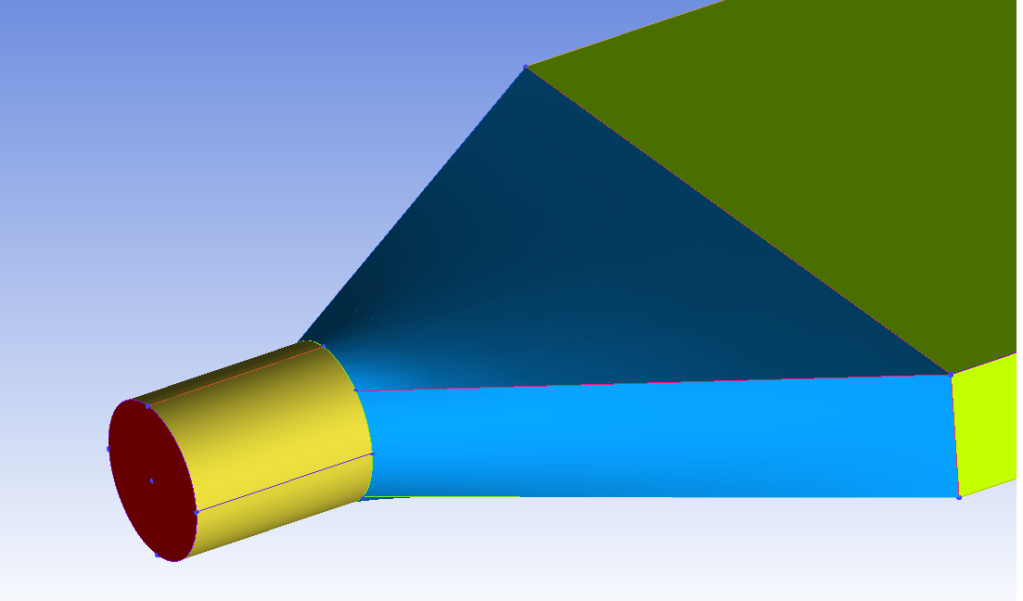

Geometry
http://i1228.photobucket.com/albums/...CEM/Geo1-1.png
http://i1228.photobucket.com/albums/.../ICEM/Geo2.png

Premesh
http://i1228.photobucket.com/albums/...EM/Premesh.png

Blocks with O-grid
http://i1228.photobucket.com/albums/...idBlocks-1.png

Hex Cells - Mesh Quality - Aspect Ratio
http://i1228.photobucket.com/albums/...spectratio.png

Hex Cells - Mesh Quality - Quality
http://i1228.photobucket.com/albums/...EM/Quality.png

I am getting very high aspect ratio hex cells in the transition part, Can anyone assist me in having a better quality mesh. I could not figure out a way to mesh it properly in the diffuser part.

Fluent solver reports failed mesh checks:

Checking wall distance.
WARNING: The mesh contains high aspect ratio hexahedral
or polyhedral cells.
The default algorithm used to compute the wall
distance required by the turbulence models might
produce wrong results in these cells.
Please inspect the wall distance by displaying the
contours of the 'Cell Wall Distance' at the
boundaries. If you observe any irregularities we
recommend the use of an alternative algorithm to
correct the wall distance.
Please select /solve/initialize/repair-wall-distance
using the text user interface to switch to the
alternative algorithm.



P.S. : I am quite new to ICEMCFD Meshing.
crazysumi is offline   Reply With Quote

Old   March 22, 2011, 16:11
Default
  #2
New Member

Claudio
Join Date: Feb 2011
Posts: 20
Rep Power: 15
Mitpostdoc is on a distinguished road
I am quite new to Icem but I'll try to help.

It looks to me that ICEM is not correctly placing the nodes on the O-Grid internal edges. It can be more clear if you would:
right click on Pre-mesh>Scan planes
then you should swap the planes and find out what is going on inside it.

I can guess some solutions... but keep in mind that I am not an expert:
1)Extend the split on the first O-grid (the one in the round pipe) and connect it with the square section trough a more clean block structure. Check for example the one which ICEM does automatically when you create an O-Grid by selecting blocks.
2) Simply move the internal vertices around and see what happens
3) Use a different law for the nodes on the internal edges.


I hope that this was helpful.
Mitpostdoc is offline   Reply With Quote

Old   March 24, 2011, 15:40
Default
  #3
New Member

Adrian Dunne
Join Date: Jan 2011
Location: Ireland
Posts: 26
Rep Power: 15
ad281 is on a distinguished road
you might want to try put in tetrahedral elements in that transition region.
ad281 is offline   Reply With Quote

Old   March 24, 2011, 17:46
Default Fix topology and snap to fit...
  #4
Senior Member

PSYMN's Avatar

Simon Pereira
Join Date: Mar 2009
Location: Ann Arbor, MI
Posts: 2,663
Blog Entries: 1
Rep Power: 47
PSYMN has a spectacular aura aboutPSYMN has a spectacular aura about
Sorry, your topology is wrong and then you didn't fit your bad topology before creating your Ogrids...

Lets look at topology first...

You said it yourself, it is just a pipe with a transition... Therefore you just need a pipe type topology...

Create a single block for the length of the pipe... Associate the ends of the block to the ends of the pipe... (one end is associated to the circle, the other to the square at the opposite side...)

Then split the block twice across its length... Associate these new splits, one with the circle on the one side of the transition and the other with the rectangle on the other side of the transition...

Actually snap fit these verts into place before creating the Ogrid... The quality will already be decent except for the "corners" of the round pipe.

Then apply the ogrid... Select all three blocks for the Ogrid, also select the inlet and outlet faces... Apply.

Now your blocking is done.

Adjust your edge parameters to have the right mesh distributions, etc...
PSYMN is offline   Reply With Quote

Old   April 21, 2011, 02:22
Default
  #5
New Member

Join Date: Jan 2011
Posts: 24
Rep Power: 15
vidhya is on a distinguished road
hi,
i too have same type of queries.. i have an inlet port in a tank through which i give my feed.. and also an outlet port. once i do hexa meshing, first i finish it for the tank region. then i went for the two ports. i have meshed it this way.. like created inidividuals blocks for the two ports and meshed it. do i have to include a block for the same in the tank cos i have the outlet attached to tank and then extruded out. so is it right that i do meshing for the ports separately and then the curved part on the tank surface separately..
i am new to this meshing thing.. please figure it out.

and also i have a bend in my inlet port which is then extruded straight for few mm.
now how do i mesh this??
vidhya is offline   Reply With Quote
