[Other] Trouble with pull command in spaceclaim to create cyclone outlet

Gersteloni · September 14, 2023, 11:05

Hi folks,

this is my first post on this board and I am currently trying to getting used to Ansys mostly for Fluid Flow simulation.

I am working on a cyclone separator to simulate dust particle separation and I am currently struggling with a seemingly very easy geometry.

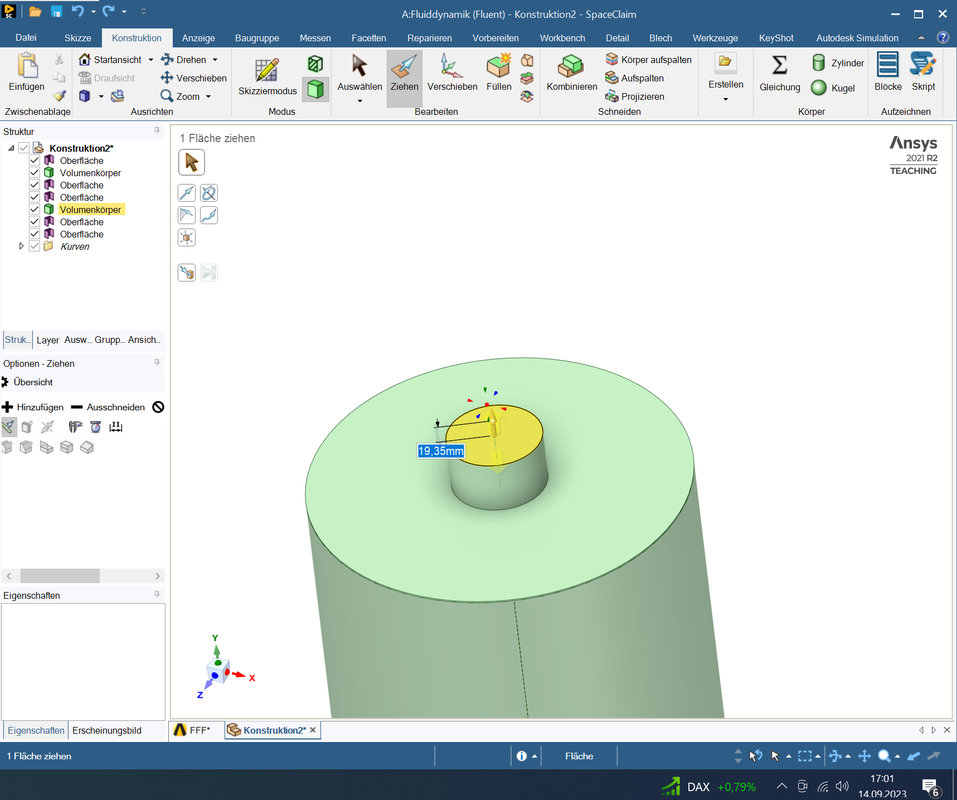

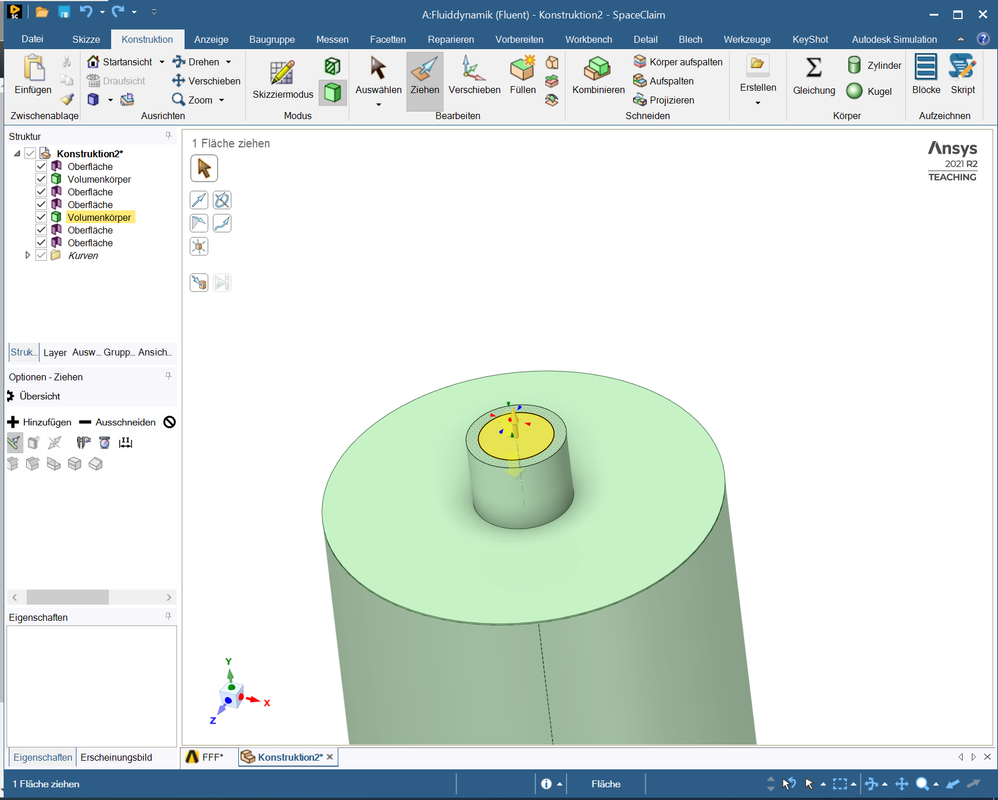

My issue is that I cant find a way to create the pipe outlet of the cyclone on the top. I created a solid cylinder by the pull command of a circular surface. I made a second, smaller circle with the outlet inner diameter but when trying to cut with the pull command, it cuts away the inlet as a whole instead of creating the desired hole. This issue sounds super simple, but I am stuck.

Thanks so much for any advice!

Gert-Jan · September 21, 2023, 05:38

Default action is "Hinzufügen". Therefore you should tick "Ausschneiden".
Did you do that?
